Small optics require a small mount! With the increase in micro carry optics on the market, OuterImpact is excited to announce the Smith and Wesson M&P Micro Red Dot Mount. The Smith and Wesson® M&P Micro Red Dot Mount is designed to add minimal weight and height to your carry pistol and securely accept a variety of micro red dot sights on the market including:

• Holosun – 407″K“/507”K“
• Holosun – 507″K” X2
• Holosun – EPS
• Swampfox – Sentinel
• Shield Sights – RMSc
• Sig Sauer – Romeo Zero
• JP Enterprises – JPoint
• Crimson Trace – 1500 / 1550 / CT RAD Micro
• Springfield HEX Wasp
• Riton – 3 Tactix MPRD 2
• Riton – X3 Tactix V2
• Bushnell – RXC-200
• Bushnell – RXU-200
• SOUSA – DARC Micro
• Vortex Defender CCW
• US Optics – USO DRS 2.0
• Ameriglo – Haven
• Athlon – Midas EDC
• Vector Optics – Frenzy S
• ADE – RD3-021 NUWA
• Osight – S, SE, K

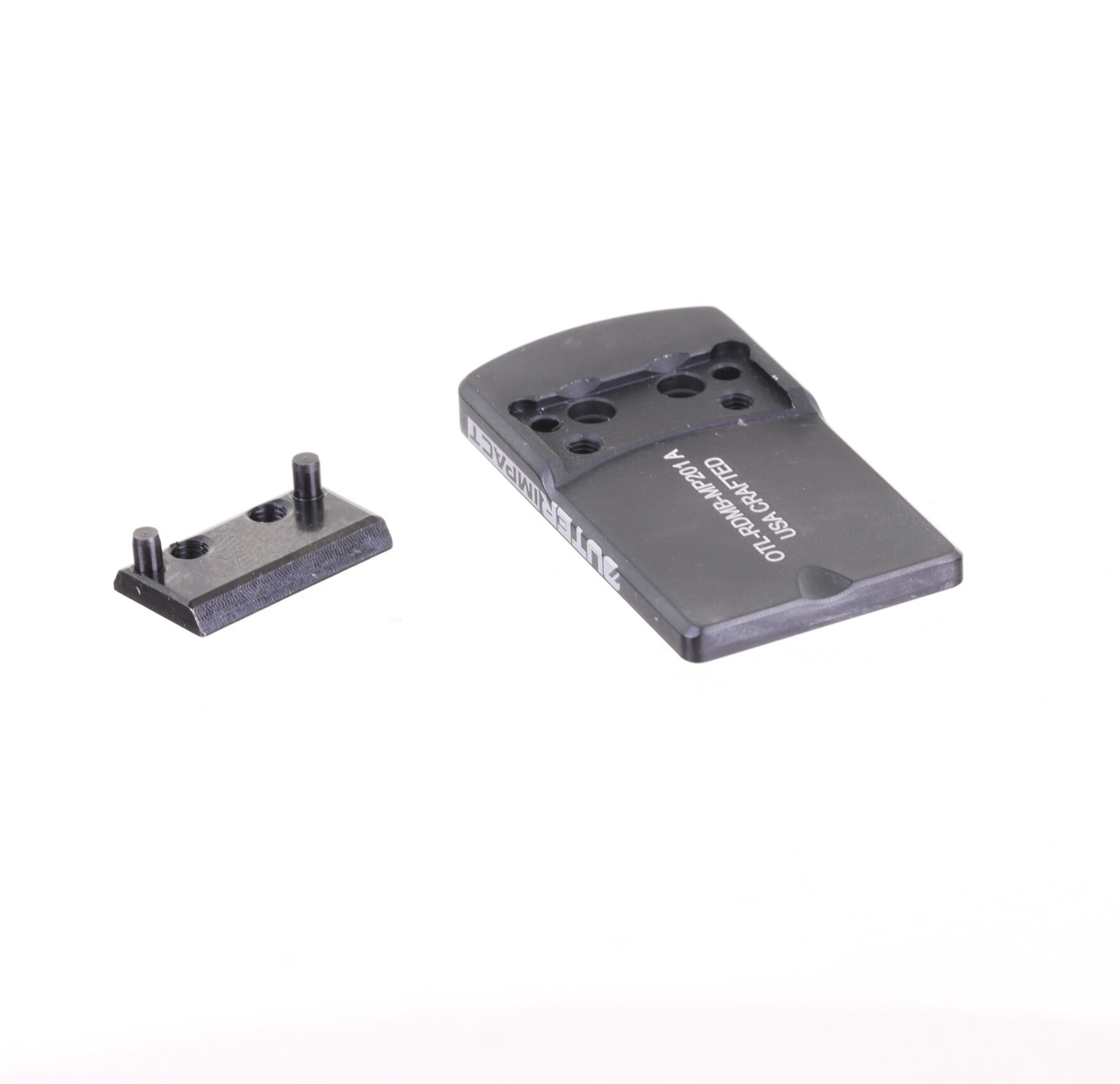

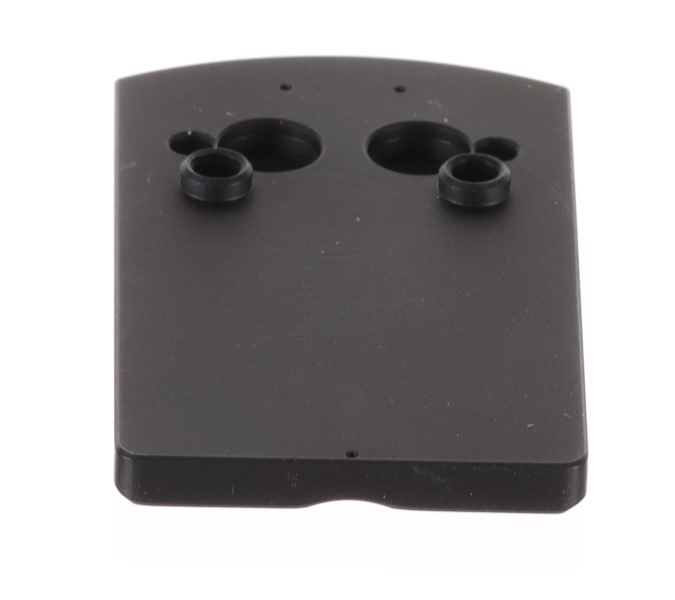

The Smith and Wesson M&P Micro Red Dot Mount is made in the USA of 7075 aircraft aluminum and is hard coat anodized. The Micro Red Dot Adapter Mount attaches to the handgun with the use of a steel dovetail mount and all mounting hardware is included with each mount.

Thank you for your interest in our products and feel free to contact us at [email protected] with any questions.

Specifications:

Compatible S&W Pistols:

• M&P Pistol – All
• M&P Shield Pistol – All
• M&P M2.0 Pistol – All
• M&P M2.0 Shield Pistol – All (not compatible with .380 EZ)
• M&P M2.0 Compact Pistol – All (not compatible with .22 version)
• NOT Compatible with CORE Models
• NOT Compatible with M&P Bodyguard .380

• M&P Pistol – All (not compatible with Optics-Ready models, EZ models)
• M&P Shield Pistol – All (not compatible with Optics-Ready models)
• M&P M2.0 Pistol – All (not compatible with 10MM Optics-Ready or Optics-Ready  models)
• M&P M2.0 Shield Pistol – All (not compatible with Optics-Ready models
• M&P M2.0 Compact Pistol – All (not compatible with Optics-Ready models or .22 version)
• M&P Shield Plus (pistols with the optics ready slide require an adaptor)

Mounting Hardware:

• (2) 6-48 Weaver T-10 Torx Head Screws
• (2) M3 x 8mm Flat Head Screws
• (2) M3 x 6mm Socket Head Screws
• (2) M3 x 8mm Socket Head Cap Screws
• (2) M3 x 9mm Flat Head Screw
• (2) M3 x 10mm Flat Head Screws
• (1) Dovetail
• (1) T-10 Torx Tool

Required Installation Tools :

• Sight Removal tool of choice
• Torque Driver

Please follow mounting instructions included with the optic.

Material: Billet 7075-T6 aluminum.  Dovetail is made of Steel with hardened dowel pins.

Finish: Black Anodize

Coating: Anodize

Dimensions: Length:  1.78″  Width: 1.0″ Height:  0.130″

Mounting Hardware:

• (2) 6-48 Weaver T-10 Torx Head Screws
• (2) M3 x 8mm Flat Head Screws
• (2) M3 x 6mm Socket Head Screws
• (2) M3 x 8mm Socket Head Cap Screws
• (2) M3 x 9mm Flat Head Screw
• (2) M3 x 10mm Flat Head Screws
• (1) Dovetail

Please follow mounting instructions included with the optic.

Material: Billet 7075-T6 aluminum. Dovetail is made of Steel with hardened dowel pins.
Finish: Black Anodize
Coating: Anodize
Dimensions: Height – .206″ Length – 1.63″ Width – 1.06″

Installation Instructions:

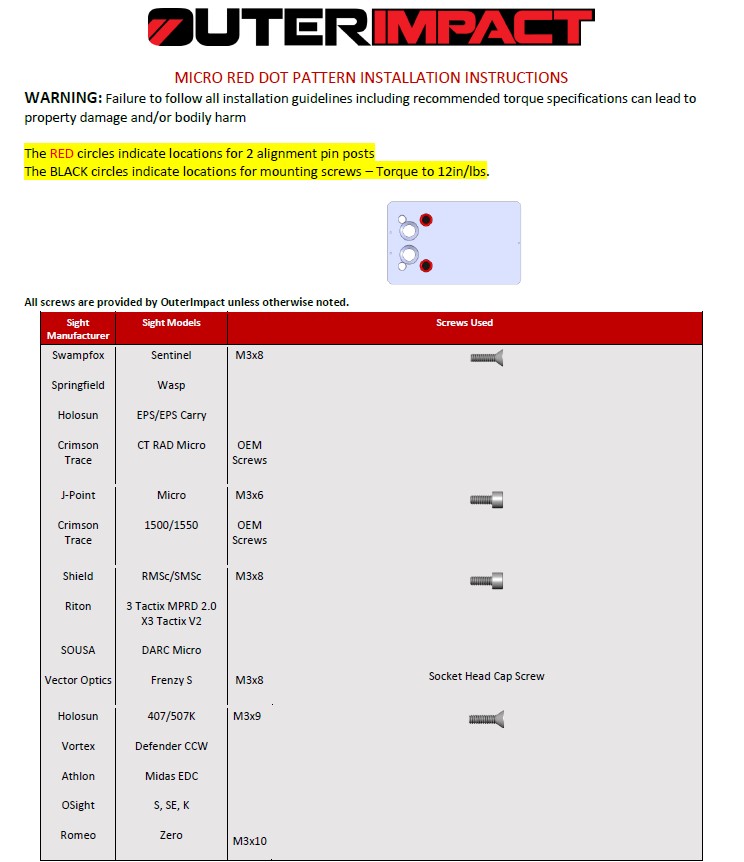

Micro Red Dot Adapter Plate Installation Instruction

How to Attach the Red Dot to the Micro Adapter Plate
