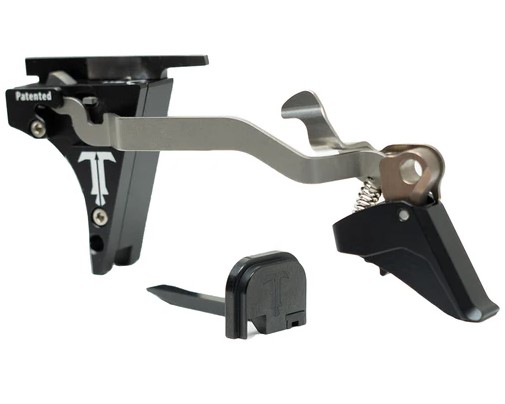

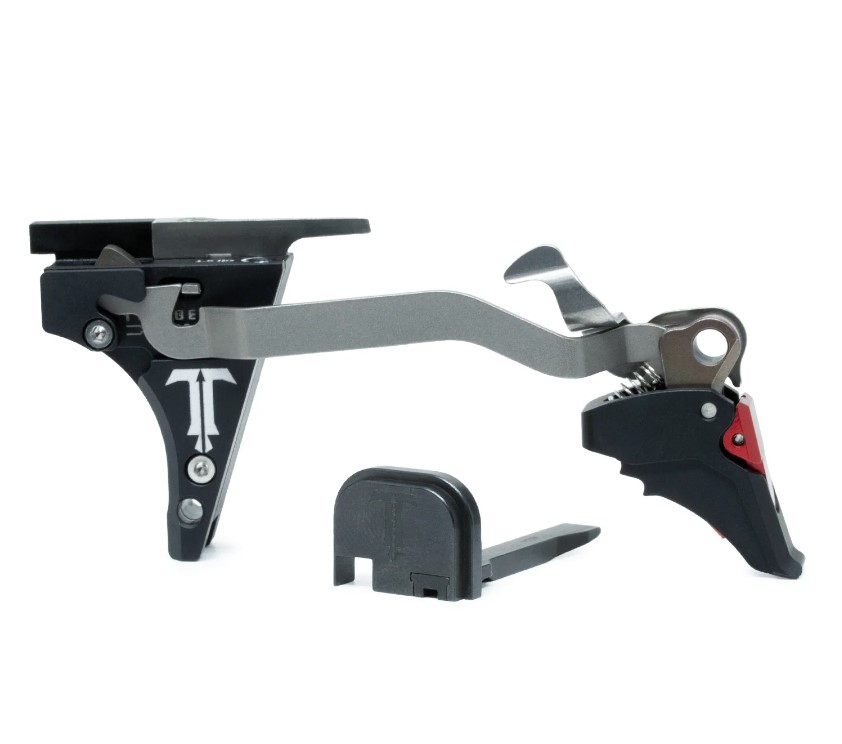

The Ace Trigger System for Glock handguns by Trigger Tech

Trigger Tech aims to offer a step change in performance, reliability and safety for every product brought to market. The Ace Trigger System for Glock delivers by far the largest margin of improvement of any product launched byt the company.

The Ace Trigger System is comprised of 3 modules:

1. Lever Module
2. Sear Module
3. Disconnect Module

The first model of the Ace Trigger System is designed to feel like a high-end 1911 and will have a pull weight range of 2.5 – 6.0 lbs. The pull-weight range is achieved through incorporating TT’s CLKR Technology™ into the sear module and providing additional lever and safety plunger springs.

Customer tuning options: 2.5 – 6.0 lbs pull weight range

Users can tune the take up, break weight and reset feel of the trigger to their individual taste. Each ACE System will ship with the Heavy Take-Up Spring installed, plus the Light Take-Up Spring and Light Plunger Spring included. Users can use different combinations of springs to find the right pull weight range, then use the patented CLKR Technology™ to dial-in their own setting.

Trigger Levers

Currently available in a flat trigger – Pro Curved and Traditional Curved can be special ordered by emailing us – [email protected]

Performance

The Ace Trigger System’s performance gains are so dramatic because we completely reengineered the mechanics of how the trigger functions. Trigger Tech did this to eliminate the parasitic movements that are detrimental to trigger performance in all existing Glock triggers.

1.  Using a designed separate disconnect feature and stand-alone sear, which enables them to use our Zero Creep Roller Technology.
2. The firing pin safety is now on a true pivot vs. a conventional ramp that caused grit.

Also added are:

1. Zero Creep Technology™ utilizes true rolling friction to offer an exceptionally crisp break

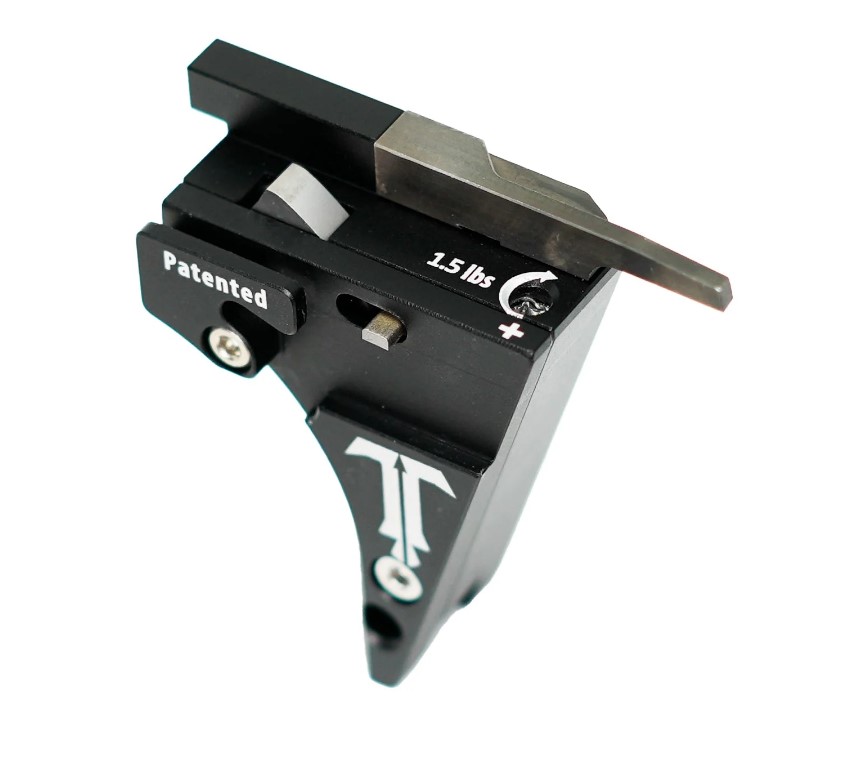

2. CLKR Technology™ features an easy-to-access adjustment screw that provides positive feedback enabling you to adjust your trigger’s pull weight quickly with confidence.
3. Three lever styles means that you can find the one that feels and looks right to you

These features come together to significantly reduce the take up and reset distances making the Glock feel more like a 1911.

Here is a trigger scan that shows the true zero creep break and other performance characteristics of the trigger.

Reliability

Trigger Tech’s Zero Creep Technology™ is proven to offer exceptional performance no matter the round count and has an unmatched ability to handle contamination and harsh environments.

Safety

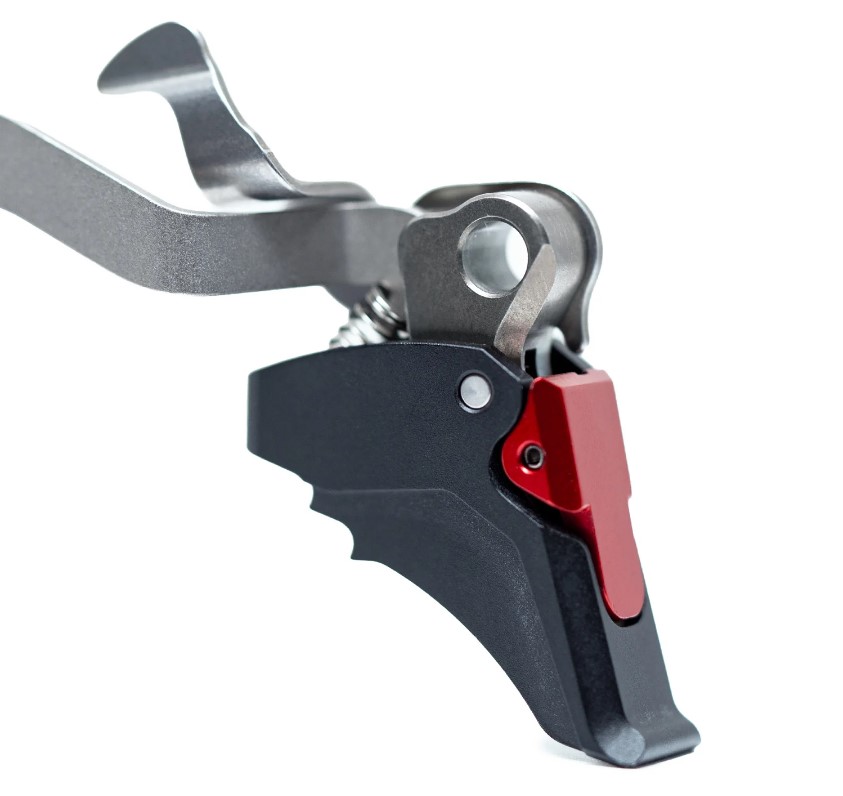

Safety was a big thing for us to get right on this trigger. The focus was to drive a step-change in performance without compromising on safety. The Ace Trigger System includes a new patented safety feature, the Enveloped Lever Safety, designed without the need for a safety blade. The entire lever now acts as the safety, while providing the performance feel of a solid monolithic trigger face.

The Ace Trigger System is compatible with and Gen 1 – 5 Glocks in standard frame 9mm & 40S&W and can be installed in under 2 minutes without any fitting or filing.

Gen 5’s will require a small frame tab to be removed.

Gen 1 – 5 compatibility is made possible by wire EDM transfer bar, that allows for exceptionally tight tolerances.

The ability to change the take up spring and the firing pin safety spring means that the take up, break weight and reset feel can all be tuned to the user’s preference. Overall, the system can be adjusted from a low end pull weight of 2.5 lbs all the way up to a high end pull weight of 6.0 lbs.

Trigger Tech Part #: G9B0-SBS-26-CIFB
