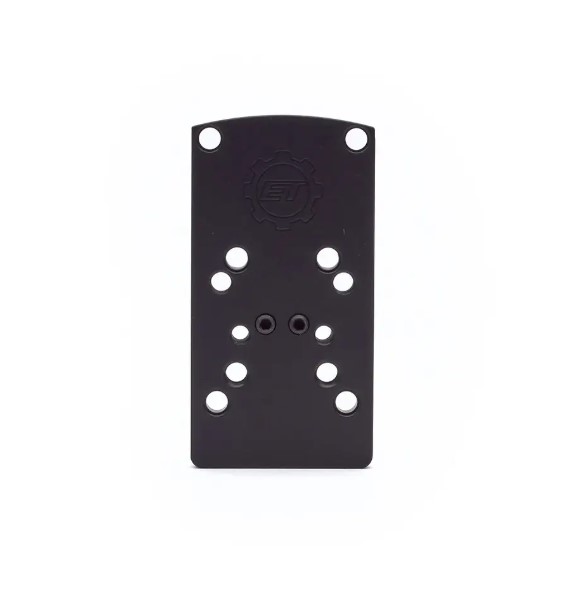

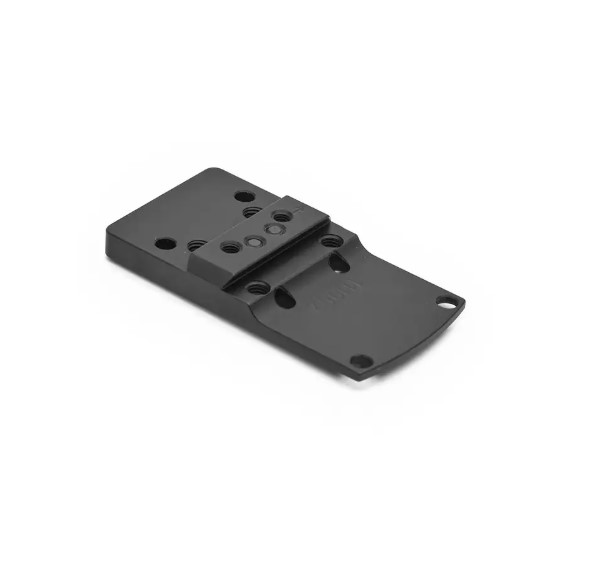

Engineered for precision and reliability, the Eemann Tech Red Dot Mount offers a solid, lightweight mounting solution for red dot optics on 1911/2011 pistols with Bomar-cut slides. Constructed from robust 7075 T6 aluminum and weighing just 15 g, it maintains perfect alignment under demanding shooting conditions. Choose between Type V1 and V2 kits, each including all required screws, hex keys, and locator pins for a wide range of red dot models.

Specification:

• Material: Aluminium Alloy 7075 T6
• Weight: 15 g
• Color: Black
• Fits: Bomar-cut 1911/2011 slides
• Optional Installation Tool: 44-130010 (sold separately)

Type V1 – 44-111901 Includes:

• Red Dot Mount – V1 (1 pc.)
• Hex Socket Set Screws – 44-131008 (2 pcs.)
• Hex Key 2 mm L-shape – 44-030013 (1 pc.)
• Locator Pins:
  • V1C – 44-130881 (2 pcs.)
  • V1A – 44-130882 (2 pcs.)
  • V1E – 44-130883 (2 pcs.)
• Spare Screws & Lock Washers:
  • For Vortex Venom – 44-130888 (2 pcs.)
  • T15 Screws for Vector Optics – 44-130891 (2 pcs.)

Compatible With (V1):

• Vortex Venom & Viper
• Burris FastFire
• SIG Romeo 1
• Vector Optics SCRD-35/40 & TEK footprints
• Docter® Sight II Plus
• Shield Sights SMS/RMS

Installation Instructions:

1. Prepare & Safety:
   • Clean work area, wear safety glasses and gloves.
   • Keep a parts tray to avoid losing small screws or pins.
2. Unload & Inspect:
   • Remove magazine and rack slide back.
   • Visually & physically inspect chamber—confirm no round is present.
3. Disassemble Slide:
   • Lock slide open, push out slide-stop lever.
   • Remove slide assembly from frame.
   • Remove guide rod, recoil spring, and barrel.
4. Remove Factory Rear Sight:
   • Secure slide in padded vise.
   • Use a dovetail sight pusher aligned to the rear sight wings.
   • Apply even pressure until sight slides out.
5. Mount Red Dot Base:
   • Note directional arrow on mount base—align toward muzzle.
   • Place mount into Bomar-cut dovetail at slight rearward angle.
   • Use ET-130010 installation tool or brass punch to tap gently.
   • Seat fully until flush, checking alignment from above.
6. Insert Locator Pins:
   • Select pins matching your red dot footprint.
   • Press pins into mount’s pin holes until they click flush.
7. Attach Red Dot Optic:
   • Place optic on mount, aligning holes to pins.
   • Insert manufacturer screws—start each by hand.
   • Tighten in criss-cross pattern to 6-10 in-lb torque (check your optic’s spec).
   • Apply medium-strength thread locker to threads before final torque.
8. Reassemble & Function Check:
   • Reinstall barrel, spring, and guide rod.
   • Reattach slide to frame; cycle action to ensure smooth operation.
9. Zero Your Optic:
   • At 10 yds begin with bore light or bore sighting to get on paper.
   • Fire group of three, adjust windage/elevation per click value.
   • Confirm at your preferred zero distance (e.g., 25 yds).
   • Record settings for future reference.

Eemann Tech Part #: ET-111901
