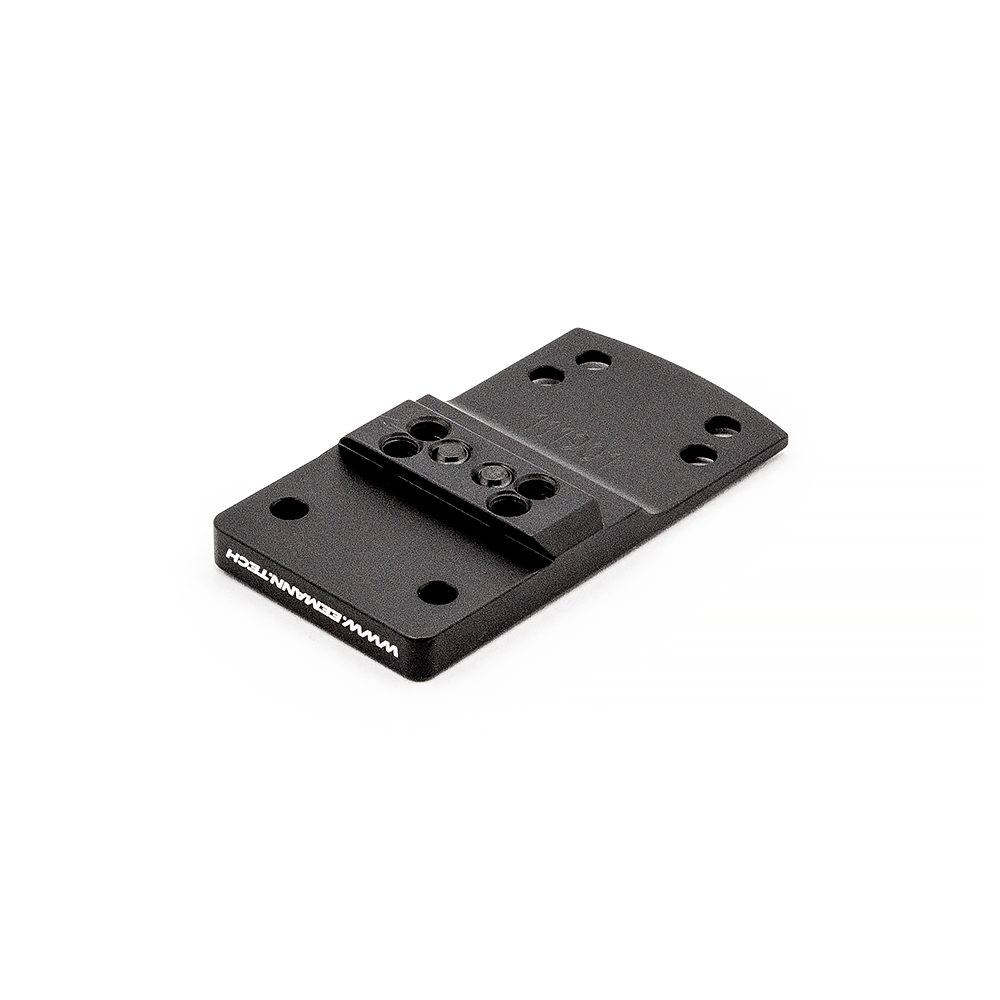

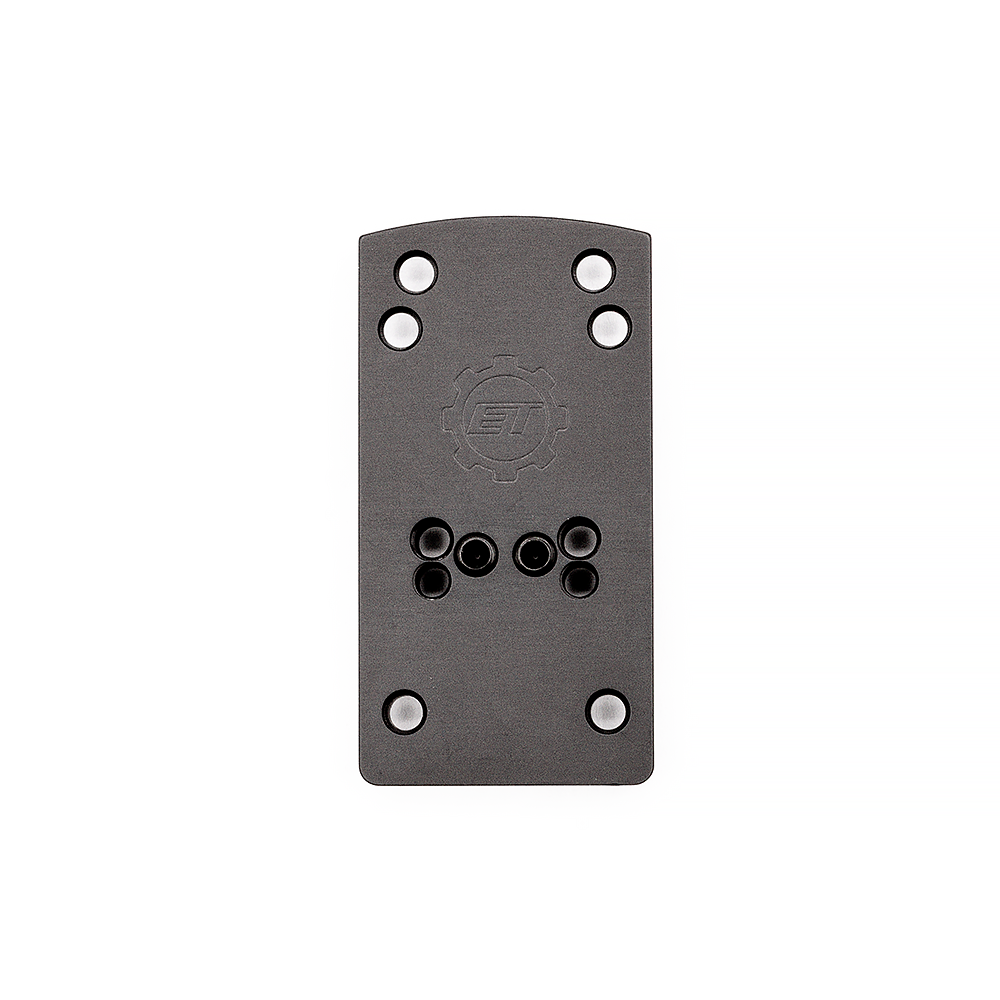

Engineered for precision and reliability, the Eemann Tech Red Dot Mount offers a solid, lightweight mounting solution for red dot optics on 1911/2011 pistols with Bomar-cut slides. Constructed from robust 7075 T6 aluminum and weighing just 15 g, it maintains perfect alignment under demanding shooting conditions.

Specification:

• Material: Aluminium Alloy 7075 T6
• Weight: 15 g
• Color: Black
• Fits: Bomar-cut 1911/2011 slides

Compatible With (V2):

• C-More RTS2/STS2/RTS3
• Benthley TSX6 & MOJ footprints
• Vortex Razor
• SIG Sauer Romeo 3
• Trijicon RMR
• Kahles Helia RD 20018/20019
• Holosun HS507C/HS507Comp/HE508T/HS407C
• Vector Optics SCRD-36/37/59

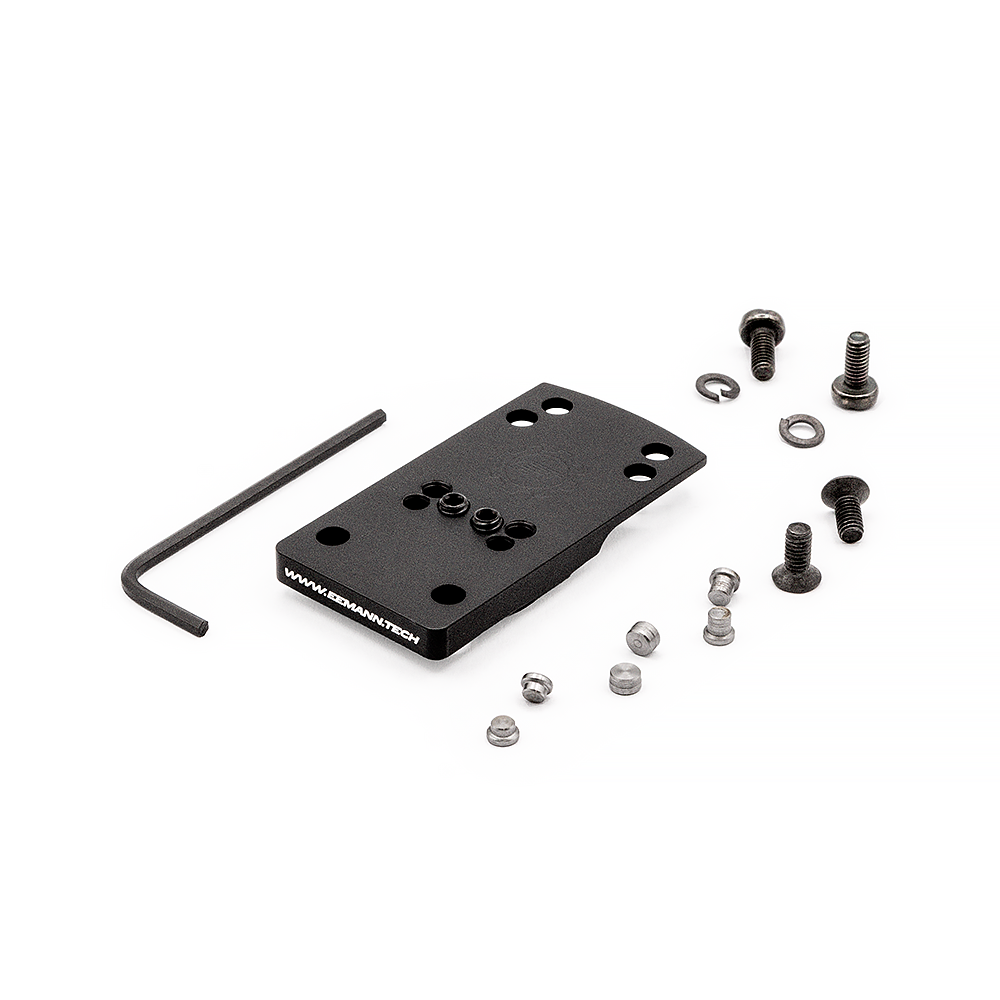

Type V2 – ET-111902 Includes:

• Red Dot Mount – V2 (1 pc.)
• Locator Pins:
  • V2B – ET-130884 (2 pcs.)
  • V2D – ET-130885 (2 pcs.)
  • V2F – ET-130886 (2 pcs.)
• Hex Keys:
  • 1.5 mm L-shape – ET-030012 (1 pc.)
  • 3 mm L-shape – ET-030015 (1 pc.)
• Hex Socket Slide Lock Screws – ET-130887 (2 pcs.)
• Spare Screws:
  • M4×10 – ET-130890 (2 pcs.)
  • M4×12 – ET-130892 (2 pcs.)
  • T15 Screws for Holosun – ET-130891 (2 pcs.)

Installation Instructions:

1. Prepare & Safety:
   • Clean work area, wear safety glasses and gloves.
   • Keep a parts tray to avoid losing small screws or pins.
2. Unload & Inspect:
   • Remove magazine and rack slide back.
   • Visually & physically inspect chamber—confirm no round is present.
3. Disassemble Slide:
   • Lock slide open, push out slide-stop lever.
   • Remove slide assembly from frame.
   • Remove guide rod, recoil spring, and barrel.
4. Remove Factory Rear Sight:
   • Secure slide in padded vise.
   • Use a dovetail sight pusher aligned to the rear sight wings.
   • Apply even pressure until sight slides out.
5. Mount Red Dot Base:
   • Note directional arrow on mount base—align toward muzzle.
   • Place mount into Bomar-cut dovetail at slight rearward angle.
   • Use ET-130010 installation tool or brass punch to tap gently.
   • Seat fully until flush, checking alignment from above.
6. Insert Locator Pins:
   • Select pins matching your red dot footprint.
   • Press pins into mount’s pin holes until they click flush.
7. Attach Red Dot Optic:
   • Place optic on mount, aligning holes to pins.
   • Insert manufacturer screws—start each by hand.
   • Tighten in criss-cross pattern to 6-10 in-lb torque (check your optic’s spec).
   • Apply medium-strength thread locker to threads before final torque.
8. Reassemble & Function Check:
   • Reinstall barrel, spring, and guide rod.
   • Reattach slide to frame; cycle action to ensure smooth operation.
9. Zero Your Optic:
   • At 10 yds begin with bore light or bore sighting to get on paper.
   • Fire group of three, adjust windage/elevation per click value.
   • Confirm at your preferred zero distance (e.g., 25 yds).
   • Record settings for future reference.
